Step 1 - Finding the problem (Part 3)

Debuggers

Debugging code is such a widespread, common problem that people have built entire programs designed to help other programmers debug more efficiently. These are suitably named debuggers, and there are plenty of debuggers that work for the C programming language. Let’s take a look at gdb, a common debugger used with the command line.

Launch Replit

For our examples, we will make use of the Quicksort algorithm.

Quicksort is an algorithm that sorts an array by first selecting an element in the array as a pivot.

Next, the elements are organized based on one of the following conditions:

• Elements lower than the pivot.
• Elements greater than the pivot.

When the sorting is done, the same process is recursively called in the upper and lower partitions of the array, taking the pivot as the middle point.

Figure 1: Quicksort using the rightmost element as the pivot and assuming the leftmost element is the “greater” element.

GDB (GNU Project Debugger) is a powerful debugger that lets you debug programs from the command line, which is useful in cases where you don’t have access to a GUI (Graphical User Interface).

It is important to understand how the program works to do effective debugging. Our ‘quicksort’ implementation runs a recursive implementation of quicksort and performs the sorting if the element is lesser than the pivot and assuming the first element is the “greater” element. The sorting itself occurs in the partition function.

Open the Shell tab and compile the program:

make Quicksort

Run gdb examples/Quicksort. This will open the GDB command line interface. To debug a program with gdb you can use gdb <name of program>.

You should see something like this:

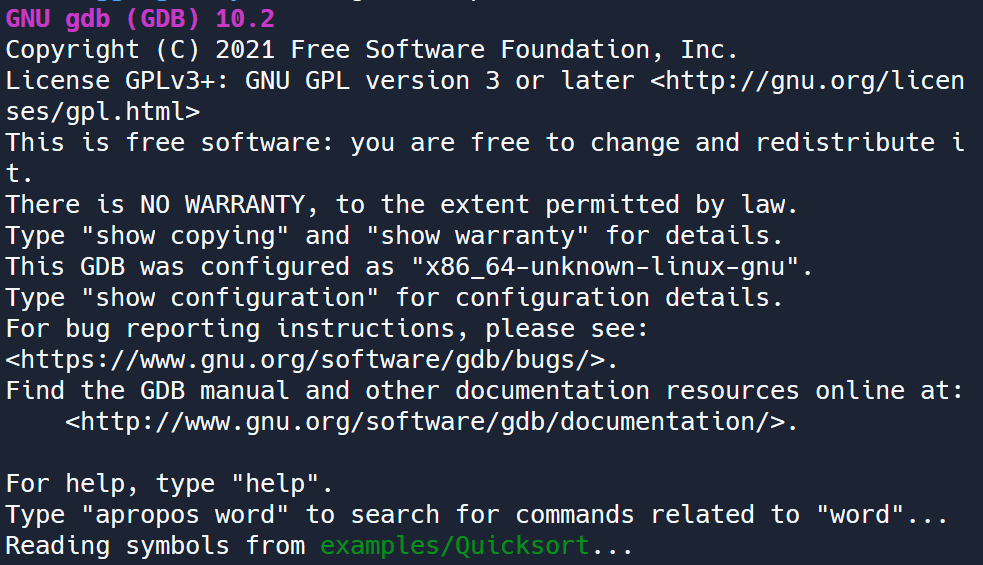

Figure 2: Running GDB on ‘Quicksort’ file.

Make sure that GDB says that it is Reading symbols from ./examples/Quicksort..., otherwise you didn’t attach the program to GDB. You can exit GDB by entering the command quit (or any of its prefixes: q works) as if it were the normal shell command line.

To debug the program, we need to run it from GDB. Enter the command run (or r). This will execute the program as if you’d run it from the normal command line.

The program first prints the contents of the array to be sorted: an array of unordered numbers. Next, it runs the sort algorithm, and finally, prints out the array sorted array. You can see how the array is shifted during the sort!

However, it seems that the sorting is not happening as intended.

Let’s use one of the most important tools debuggers offer: breakpoints. A breakpoint tells the debugger to pause the program whenever it reaches that line of code as it is executing. This enables you to take a look at what is happening within the program in real-time. Note that the debugger does not run the line of code the breakpoint is on until after you continue executing the program.

To create a breakpoint in GDB, use the following command syntax: break <filename:line>. For example, to create a breakpoint on line 15 in the quicksort.c file, use the following command:

break quicksort.c:27

If you try running the program now using run, the program will halt when it reaches the breakpoint on line 20, and show you some information about the program, such as the line of code it is stopping on.

While the program is paused, you can see the values of variables. We can use the print command to evaluate an expression and print it.

For instance, print high will print the variable high. You can get more elaborate than that by using entire expressions - print hi + 2 will evaluate hi + 2 and print it.

You can manually step through your code by calling next (or n), which will tell the debugger to advance to the next line of code without jumping into a function call. The step command will move the debugger to the first line of code in a function call.

You can try it out by creating a breakpoint within the partition function, and try either using next or step to see which line of code you’ll land on next.

If you want to have your code continue running until the next breakpoint, you can use the continue (or c) command. Finally, to delete a breakpoint, you can use the delete (or d) command followed by the breakpoint number, which you see when you set the breakpoint.

Another useful command to know is bt or backtrace. This shows you the calling stack, or which functions were called to get to the line of code the program is halted on.

This can help track the execution order. It also works well to find out how a program crashed by seeing the functions that led up to the crash.

There are plenty of commands GDB offers. We recommend using a cheat sheet that you can find online.

• Reference 1
• Reference 2

Placing Breakpoints Effectively

First let’s identify where all of the element sorting takes place. Do you know where the sorting is happening?

Place a breakpoint inside the for loop and run the program:

(gdb) break quicksort.c:27
(gdb) run

You need to find the faulty variables that cause your program to not work as expected. Try and see if you can spot the problem!

(gdb) disp p1
(gdb) disp p2

Answer

The p1 variable is not being increased when a number lesser than the pivot is found. Remember that our version will assume that each time a lesser element is found the pointer for the greater element must be updated

Add p1++; after the swap statement in line 27.

Figure 3: Fixing our quicksort algorithm.

Note that all debuggers should have the same basic concepts: they allow you to step through your code as it runs, in real-time. You should almost always use debuggers over print statements. You won’t regret it!

Another Type of Bug: Memory Errors

A C/C++’s nightmare, memory errors are one of the most frustrating kinds of bugs that exist. Failing to address them can result in undefined behavior (non-replicable bugs!) and memory leaks. Thus, fixing them is a huge priority.

Luckily, people have also written programs to help you find memory errors, and one of these programs is valgrind. Valgrind is a tool that not only looks for memory errors, but shows you exactly where the errors occur in your code. Let’s use valgrind to find where memory errors occur. As an example, we have a rudimentary implementation of a vector in C, which is the C++ standard library’s version of a dynamically sized array.

Launch Replit

First make the program using

make Vector

Now run it using

examples/Vector

Notice that there’s an error called a ‘double free’! This is a type of memory caused by calling free to a pointer twice.

Now instead of using gdb, use valgrind to check how memory is allocated and used. Run the command:

valgrind --tool=memcheck --leak-check=full examples/Vector

It should be apparent valgrind caught some errors, perhaps related to the double free (notice the ERROR SUMMARY at the bottom has a few errors detected!).

Let’s take a look at some of the errors.

The error shown above is called an invalid read, which is often because you are reading memory that was free’d in another block. Valgrind lets you see where the memory is free’d and alloc’d:

The block of memory was allocated by the malloc function in createVectorInt, which was called in the main function. The block was free’d by the free function called in the pushBack function.

Finally, in the heap summary, you can see that there were 96 bytes that were ’lost’ - in other words, there was a memory leak. This happened because we forgot to call deleteVectorInt on the vector at the end of the main function.

Valgrind provides a plethora of information that you can use to hunt down memory errors in your C and C++ programs. It not only informs you of where errors are happening, but also where memory blocks are allocated and subsequently free’d (or not free’d, in the case of a memory leak). Can you find the bug that causes all the invalid reads in the vector example?

In the exercises, you will be required to fix any memory errors that appear.
